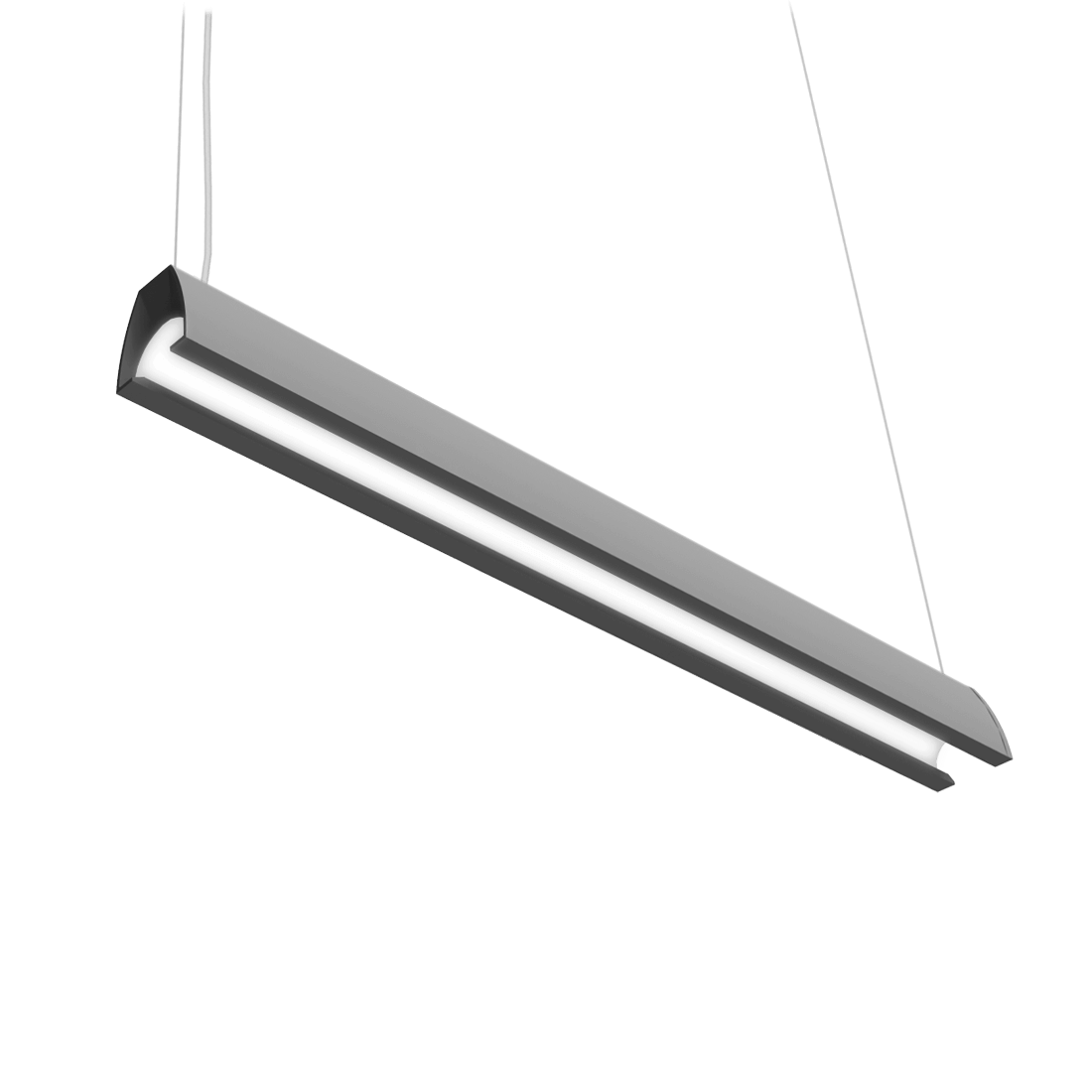

DTL Arch Series
Pendant
The DTL Arch is a sleek and sophisticated lighting solution that seamlessly blends style with functionality. It’s distinctive arch-shaped lens adds a touch of modern elegance to any space.
Tailor your illumination preferences with options for direct or direct/indirect lighting distributions, ensuring versatility to suit various lighting requirements.
Specifications & Features
Construction
Aluminum extruded body with powder coated finish
Profile
Arch
Square
Square
Manufactured
North America
Distribution
Direct, Direct/Indirect
Dimensions
Widths: 4.5″, Height: 4.5″, Lengths: 4′ or 6′
LED
Samsung LM281B Pro, 3-Step MacAdam Binning
4000K – 130 Lm/W
3500K – 98%
3000K – 95%
L90>70,000
4000K – 130 Lm/W
3500K – 98%
3000K – 95%
L90>70,000
Lumens/Ft - Direct/Indirect
Min: 250 Lm/Ft – Max: 1200 Lm/Ft
Color Temperature
2700K – 5000K
CRI
80 or 90
Voltage
120/277V or 347V
Driver
0-10V Dimming down to 1%, DALI, Lutron, Philips SR, ELDO
Control Options
Philips SNS 300, Encelium CLM, LG Dongle, Bluetooth Mesh, Enlighted Integral
Lens: Direct/Indirect
Frosted
Accessories
10kV Surge Protection, Generator Transfer Device,
Emergency Battery
Emergency Battery
Mounting
Aircraft Cable (10′ std)
Note: For indirect distribution, mount at a minimum distance of 3ft from the ceiling
Note: For indirect distribution, mount at a minimum distance of 3ft from the ceiling
Wiring
5 Leads, 5 Wire, 6 Wire (emergency battery option only)
Finishes (RAL)
Black, White, Grey, Custom
Warranty
5-Years
Certifications
Documents
Specification Sheet
IES Files
Installation Instructions
RAL Finishes
Black - RAL 9004
White - RAL 9003
Grey - RAL 7046
Custom - RAL Finishes
