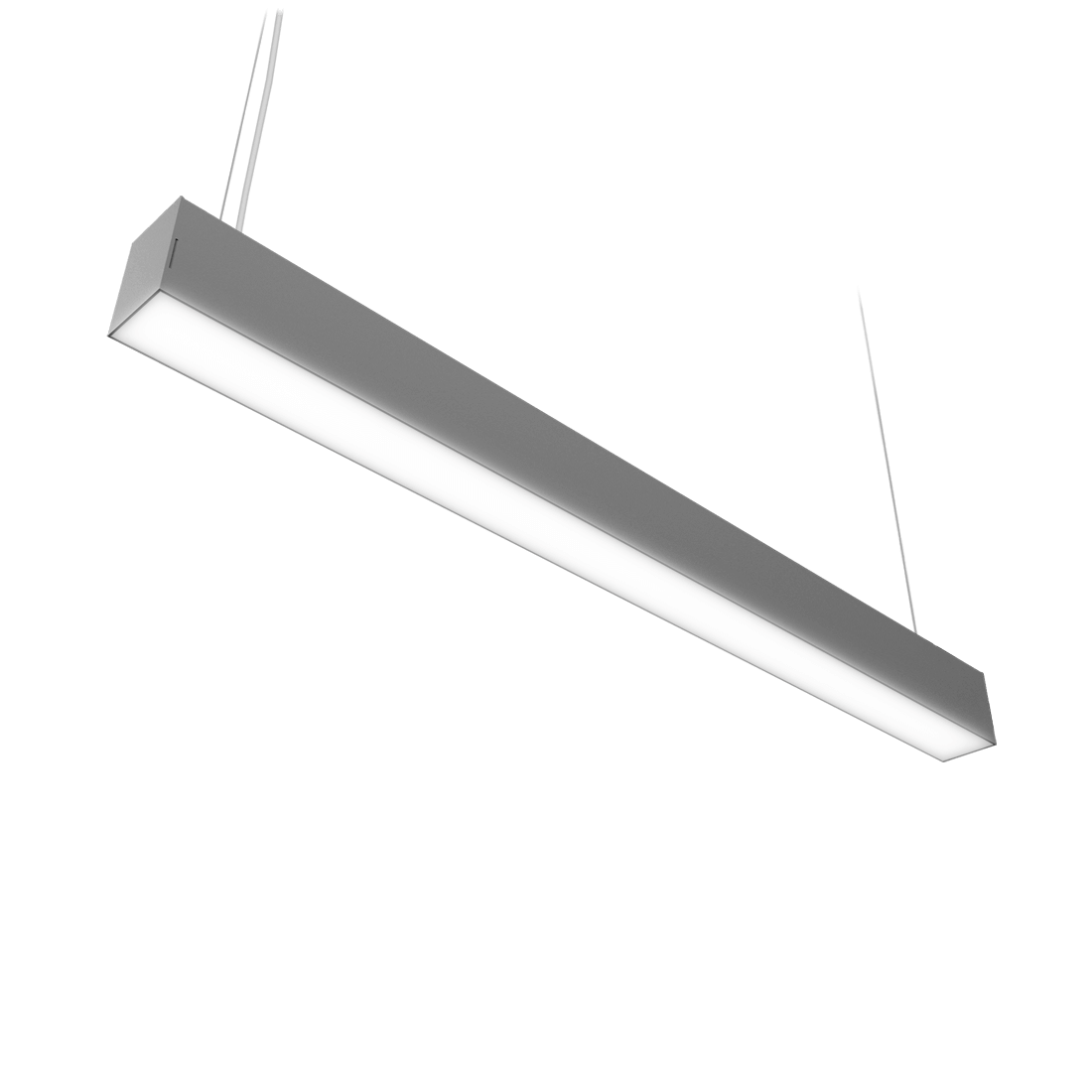

Thinline Suspended
Direct | Outdoor Canopy
Architectural luminaire. Contemporary and minimal design. Pendant mounting. Outdoor canopy applications. Direct distribution. Aluminum extruded body. 3.18″ wide. Cast end caps with light block. Single unit and continuous run options. Multiple finishes.
Designed and Manufactured in North America
cULus certified
5-Year Warranty
Thinline Suspended
Direct | Outdoor Canopy
Architectural luminaire. Contemporary and minimal design. Pendant mounting. Outdoor canopy applications. Direct distribution. Aluminum extruded body. 3.18″ wide. Cast end caps with light block. Single unit and continuous run options. Multiple finishes.
Designed and Manufactured in North America
cULus certified
5-Year Warranty
Specifications
LED
L90>70,000
Samsung 301 3-Step MacAdam Binning
4000K – 120 Lm/W
3500K – 116 Lm/W
3000K – 112 Lm/W
CRI: 80, 90
CCT: 2700K – 5000K
Samsung 301 3-Step MacAdam Binning
4000K – 120 Lm/W
3500K – 116 Lm/W
3000K – 112 Lm/W
CRI: 80, 90
CCT: 2700K – 5000K
Lumens/Ft: Direct
250 Lm, 500 Lm, 750 Lm,
1000 Lm, 1200 Lm (custom)
1000 Lm, 1200 Lm (custom)
Voltage
120/277V, 347V
Optics
Frosted Flat
Dimensions
Width: 3.18″
Height: 4″
Lengths: 2′-8′ (1′ increments)
(optional 6″)
Height: 4″
Lengths: 2′-8′ (1′ increments)
(optional 6″)
Mounting
Aircraft Cable (10′ standard)
Threaded Rod
Threaded Rod
Continuous Run
2′ Minimum (1′ increments)
(optional 6″ increments)
(optional 6″ increments)
Finishes
Standard White
Custom finishes available
(contact factory)
Custom finishes available
(contact factory)
RAL 9003 – White
