Del Snap
Metric Troffer

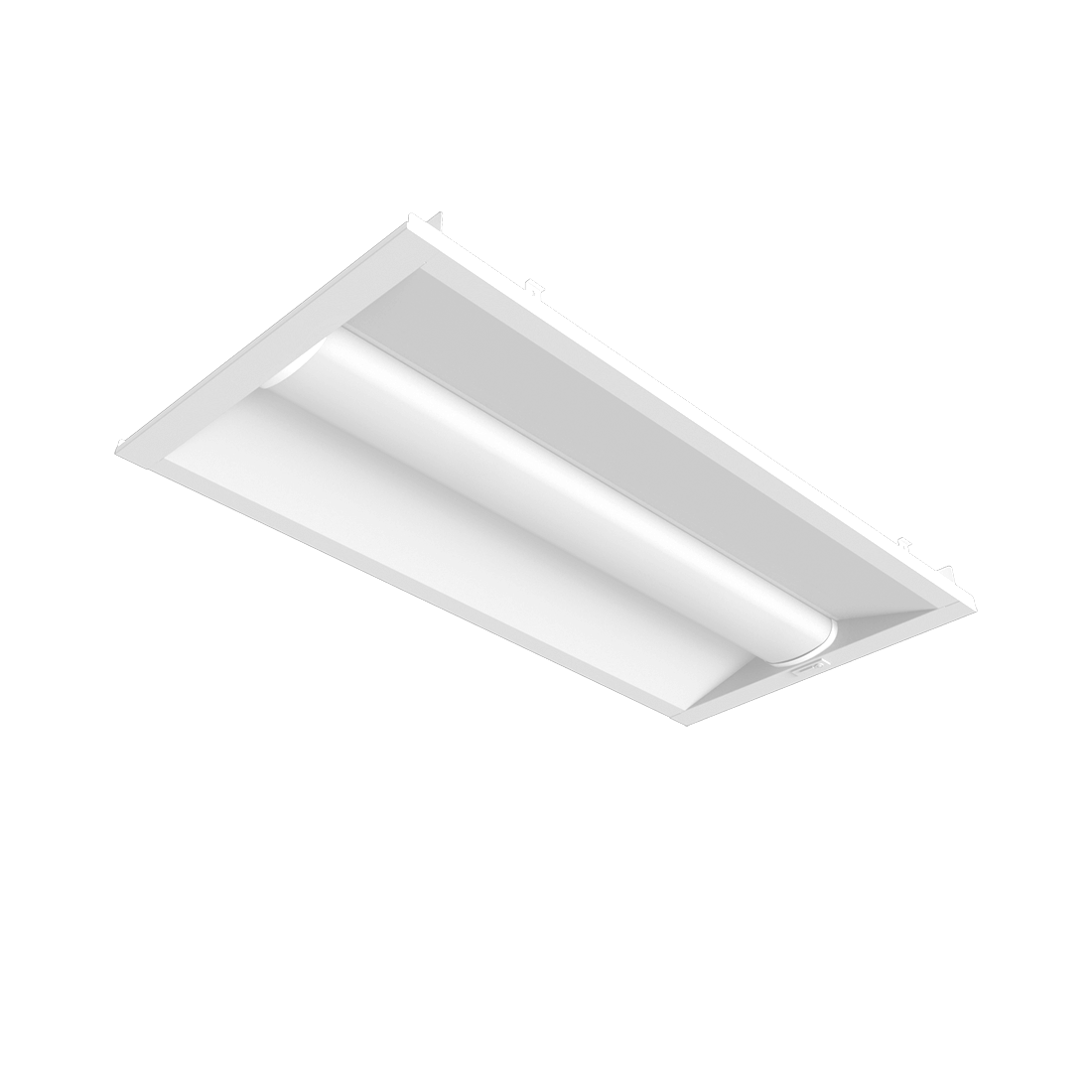

The Del Snap Metric troffer provides versatility and energy-efficiency for offices, schools, hospitals, retail stores, conference rooms, lobbies, and various ceiling light applications. With its sleek steel construction in a white finish and standard frosted lens, this fixture offers a modern and clean look.
Available in 6 different sizes, this troffer fixture ensures cost savings while illuminating your space with bright and clear light. The air handling option guarantees optimal air circulation and quality, creating a comfortable environment. Easy lay-in Installation and dry and damp ratings ensure durability and reliability.
Specifications & Features
Construction
Steel body with powder coated finish
Manufactured
North America
Dimensions: WxHxL
300×1200: 295mm x 106.4 mm x 1195 mm
300×1500: 295mm x 106.4 mm x 1495 mm
500×500: 495mm x 106.4 mm x 495 mm
500×1200: 495mm x 106.4 mm x 1195 mm
500×1500: 495mm x 106.4 mm x 1495 mm
600×1500: 595mm x 106.4 mm x 1495 mm
300×1500: 295mm x 106.4 mm x 1495 mm
500×500: 495mm x 106.4 mm x 495 mm
500×1200: 495mm x 106.4 mm x 1195 mm
500×1500: 495mm x 106.4 mm x 1495 mm
600×1500: 595mm x 106.4 mm x 1495 mm
LED
Samsung LM281B Pro, 3-Step MacAdam Binning
200,000+ Life Hours (L70)
200,000+ Life Hours (L70)
Efficacy
Up to 130 Lm/W
Watts
300×1200: 20W – 60W
300×1500: 20W – 60W
500×500: 20W – 30W
500×1200: 20W – 60W
500×1500: 20W – 60W
600×1500: 20W – 60W
300×1500: 20W – 60W
500×500: 20W – 30W
500×1200: 20W – 60W
500×1500: 20W – 60W
600×1500: 20W – 60W
Color Temperature
2700K – 5000K
CRI
80 or 90
Voltage
120/277V or 347V
Controls
0-10V Dimming down to 1%
Lens
Frosted
Accessories
Occupancy Sensor (on/off), Bi-Level Dimming (100%/10%), 10kV Surge Protection, Photo Control, Air Handling Slots
Mounting
T-Bar
Wiring
Black or White Flexible Cord
Finishes (RAL)
White, Custom
Warranty
5-Years
Certifications
Documents
Specification Sheet
