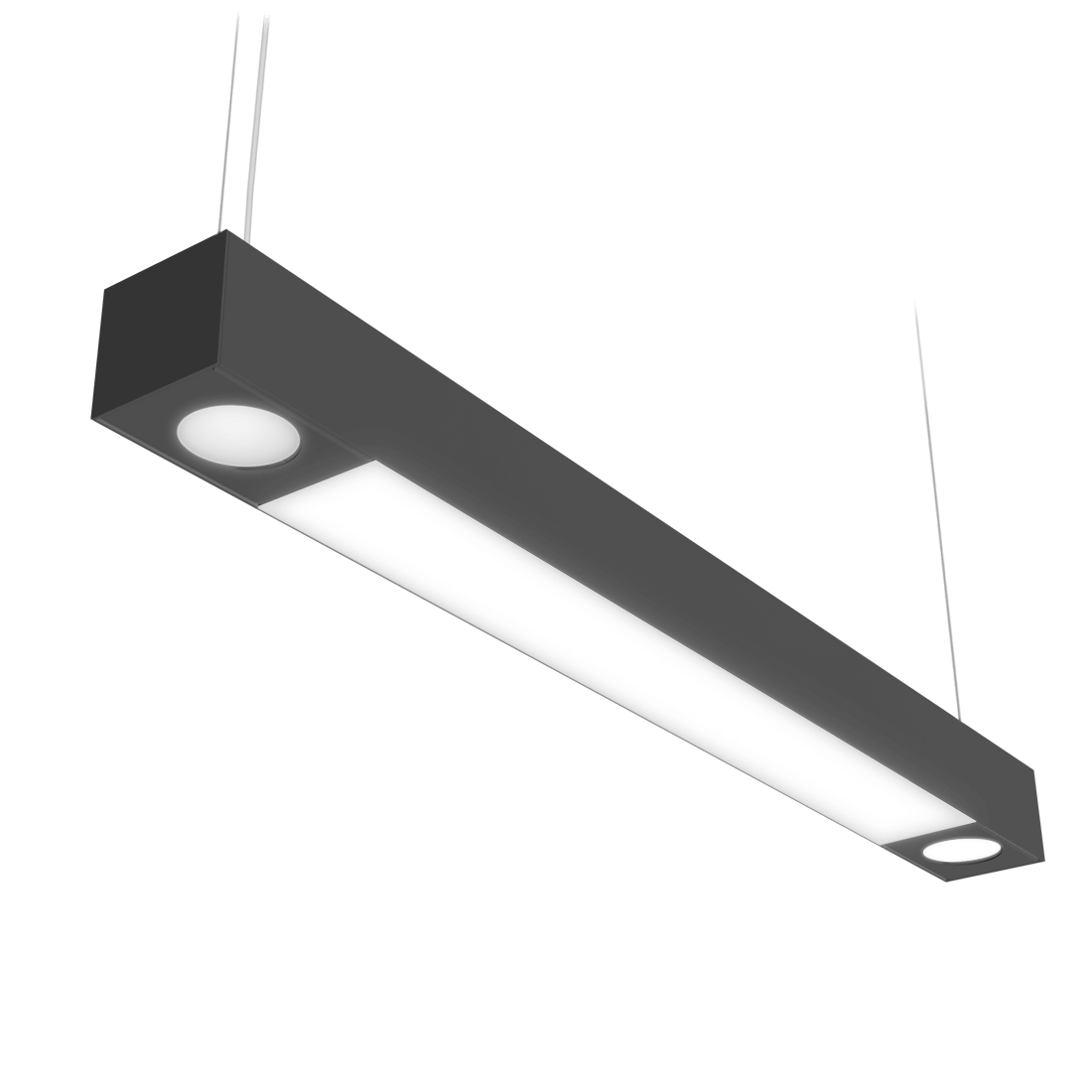

black LED fixture with frosted lens and spotlights at start and end positions

Thinline Spot Linear

Suspended Direct | Direct/Indirect

Architectural luminaire. Contemporary and minimal design. Pendant mounting. Aluminum extruded body. Cast end caps with light block. Spotlights at start, middle, and end positions. Direct and direct/indirect distribution. Spotlight driver 0-10V dimming. Multiple finishes. Dry and damp rated.

Designed and manufactured in North America

cULus certified

5-Year Warranty

Thinline Spot Linear

Suspended Direct | Direct/Indirect

Architectural luminaire. Contemporary and minimal design. Pendant mounting. Aluminum extruded body. Cast end caps with light block. Spotlights at start, middle, and end positions. Direct and direct/indirect distribution. Spotlight driver 0-10V dimming. Multiple finishes. Dry and damp rated.

Designed and manufactured in North America

cULus certified

5-Year Warranty

black LED fixture with frosted lens and spotlights at start and end positions
Specifications

LED

L90>70,000
Samsung 301 3-Step MacAdam Binning
CRI: 80, 90
CCT: 2700K – 5000K
4000K – 120 Lm/W
3500K – 116 Lm/W
3000K – 112 Lm/W

Spotlight LED:
4000K – 166 Lm/W
3500K – 165 Lm/W
3000K – 161 Lm/W

Lumens/Ft: Direct

250 Lm, 500 Lm, 750 Lm,
1000 Lm, 1200 Lm (custom)

Spotlight Watts

10W
15W

Voltage

120/277V

Optics - Direct

Frosted Flat

Optics - Indirect

Frosted
Batwing
Asymmetric Clear

Spot Beam

20° Narrow Beam
30° Medium Beam
50° Wide Beam

Mounting

Aircraft Cable
Threaded Rod
T-Bar 9/16 Clip
T-Bar 15/16 Clip

Dimensions

Width: 4.5″
Height: 4″
Lengths: 2′-8′ (1′ increments)

Finishes

3 standard finishes
Custom finishes available
(contact factory)
ï„‘
RAL 9003 – White
ï„‘
RAL 7046 – Grey
ï„‘
RAL 9004 – Black
